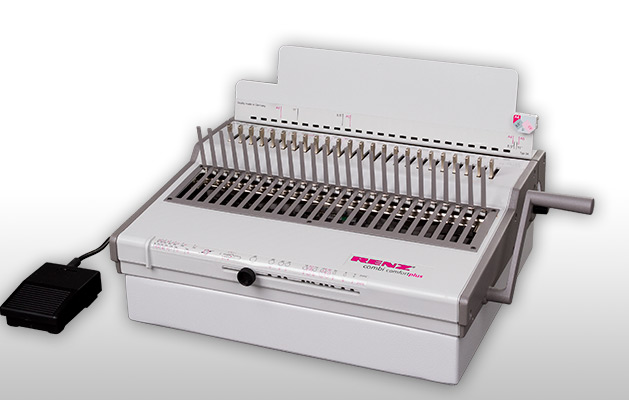

Desktop plastic comb punching and binding machine. For all types of comb book production. Designed to produce documents of all sizes in low and medium volumes quickly and easily. This electric punching and manual binding machine is designed for regular use in a small to medium sized office. It takes the manual labour out of punching.

  • Binds up to 480 sheets
  • Closure control guarantees easy comb closure
  • Gauge to alter margin for a stronger bind
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5 and A4
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document or comb size
  • Heavy duty construction & compact design
Maximum:
Width

Width
340 mm

Punch up to

Punch up to
2.5 mm

Bind up to

Bind up to
48 mm

Output:
Max. punched sheets per hour

Max. punched sheets per hour
16,000

Max. bound products per hour

Max. bound products per hour
250

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.

Vertical punching makes it simple and easy to punch correctly every time.

QSA (Quick Size Adjustment) technology allows the punching pins to be cancelled and the paper formats to be changed quickly and easily.

The depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm. This adds strength to the bound edge.

It binds volumes up to 480 sheets. The closure control guarantees quick and easy comb opening and closure.

EAN 4029126511340
Article n° 27340300
Capacité de perforation de feuilles / h 16,000
Largeur min. de perforation 10 mm
Largeur max. de perforation 340 mm
Long. min. du bord non perforé 50 mm
Long. max. du bord non perforé 500 mm
Épaisseur max. de perforation 2.5 mm
Perforation Electric
Matrices de perforation proposées Oblong 8 x 3 mm
Pas US
Poinçons débrayables (QSA) Yes
Profondeur de marge réglable Yes
Épaisseur de reliure 1 - 48 mm
Ø de la baguette de reliure 6 - 52 mm
Largeur min. de reliure 10 mm
Largeur max. de reliure 340 mm
Reliure Manual
Nb de cahiers réalisés / h 250
Dimensions de la machine (L x P x H) 360 x 500 x 350 mm
Poids de la machine 23.5 kg
Dimensions de la machine (L x P x H) 620 x 480 x 345 mm
Poids de la machine emballage compris 26 kg
Alimentation électrique 230/250 V/50 Hz/180 W
115/200 V/60 Hz/180 W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
